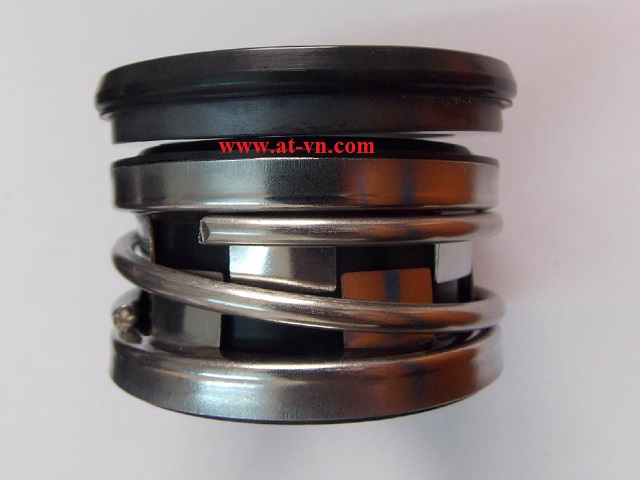

Phốt làm kín Flex A Seal FAS (USA) thay thế John Crane Type 2100:

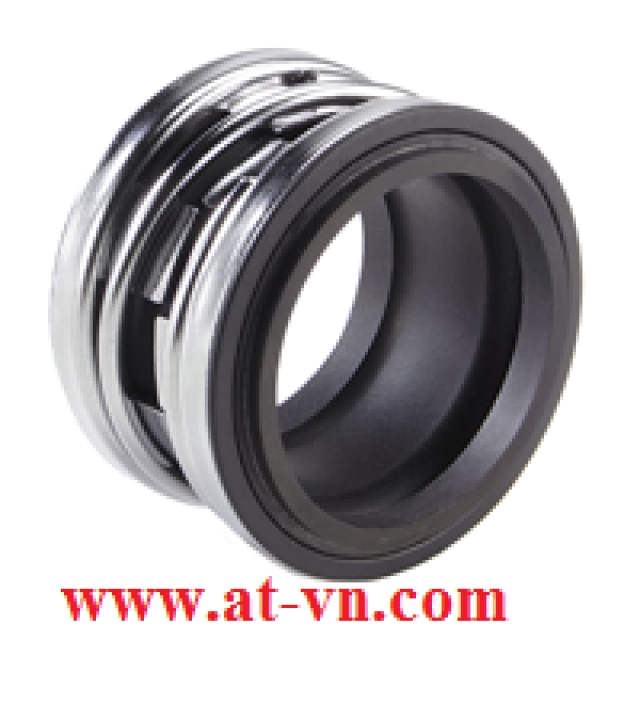

The type 2100 is a compact, unitised, single spring, elastomer bellows mechanical seal.
+ For centrifugal, rotary, and turbine pumps, compressors, blenders, chillers, and other rotary equipment.
+ For many water-based applications, such as wastewater treatment, pulp and paper, food processing, marine, and
other general applications.
+ Pressure: up to 16 bar g/230 psig
+ Tempurature: -40°C to 150°C / -40°F to 300°F
+ Speed: up to 15 m/s/3000 fpm
+ Unitised, easy-to-fit design
+ Bellows design is pressure supported and eliminates creases or folds
+ Compact design fits DIN 24960, ISO 3069, and ANSI B73.1 M1991
+ Positive key drive via drive bands protects bellows from torsional strain
