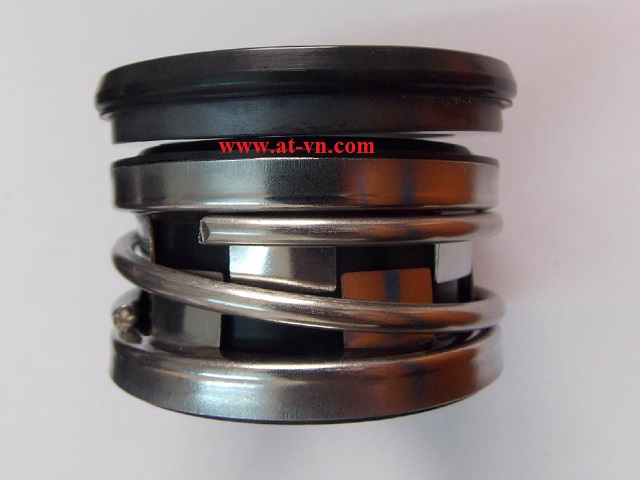

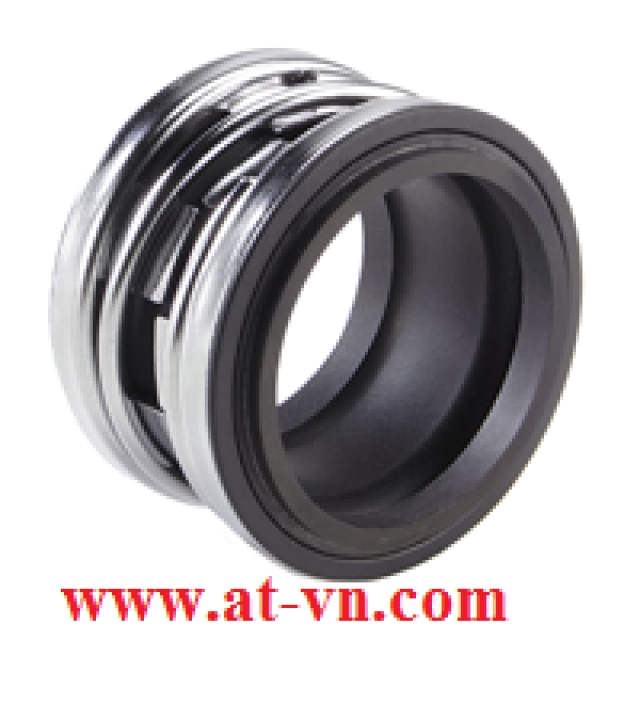

Phốt làm kín Flex A Seal FAS (USA) thay thế John Crane Type 2100:

Product Description:

The type 2100 is a compact, unitised, single spring, elastomer bellows mechanical seal.

+ For centrifugal, rotary, and turbine pumps, compressors, blenders, chillers, and other rotary equipment.

+ For many water-based applications, such as wastewater treatment, pulp and paper, food processing, marine, and

other general applications.

Operating limits:

+ Pressure: up to 16 bar g/230 psig

+ Tempurature: -40°C to 150°C / -40°F to 300°F

+ Speed: up to 15 m/s/3000 fpm

Design Features:

+ Unitised, easy-to-fit design

+ Bellows design is pressure supported and eliminates creases or folds

+ Compact design fits DIN 24960, ISO 3069, and ANSI B73.1 M1991

+ Positive key drive via drive bands protects bellows from torsional strain
